Analog satellite tuner 950 to 1700 mhz

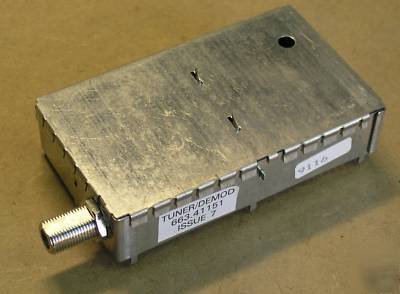

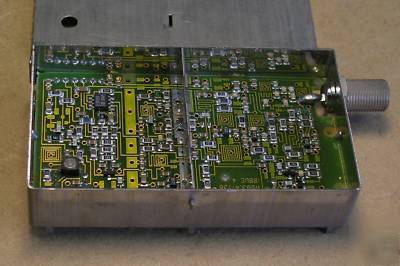

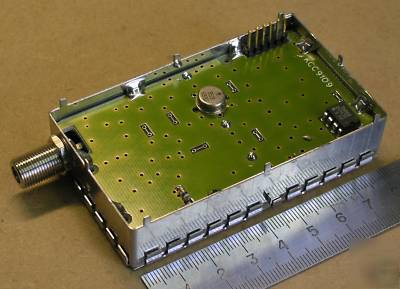

Satellite tuner used in early tuner sets for analog signal reception.The IF operating range is 950 to 1700 MHz and is suitable for wireless audio/video applications in this range(fastscan TV for the 23cm band for example).With 12V DC on varicaps pin,the module tunes at 1500MHz (local oscillator +479 MHz).External dimentions:85mm(L),50mm(W),18mm(H),with pins for pc board application.The value of SAW filter and prescaler chip themselves on board are well above the price for the whole unit itself! There is no data sheet available but connector pinning is given for proper use.
