Agilent hp 3575A gain-phase meter 1HZ - 12MHZ

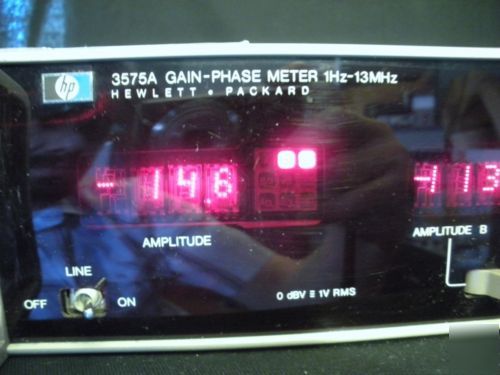

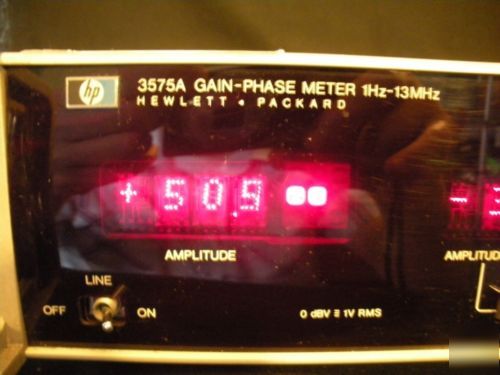

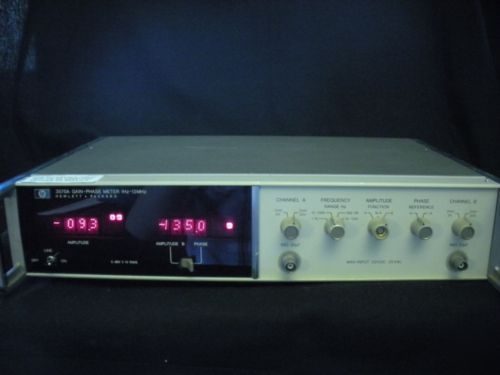

Agilent HP 3575A Gain-Phase Meter 1Hz - 12MHz
Broadband two channel analyzer measures transfer functions such as amplifier gain/loss or the frequency response of filters;

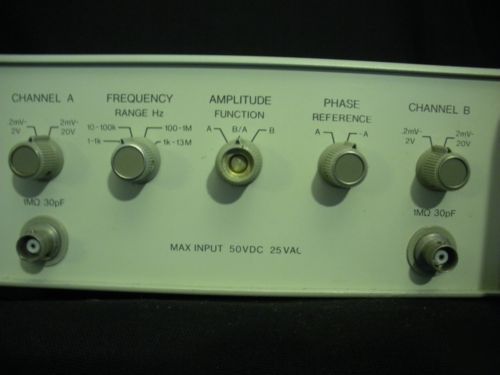

1Hz to 13MHz range, 200uV rms to 20V rms level range, 1Mohm in parallel with 30pF impedance; A dBV, B dBV, or B/A dB amplitude functions, 0.1dB resolution, +/-180 degrees with 12 degrees of overrange, 0.1 degree resolution.
