13' x 5/8" cincinnati-inc mechanical press brake #23969

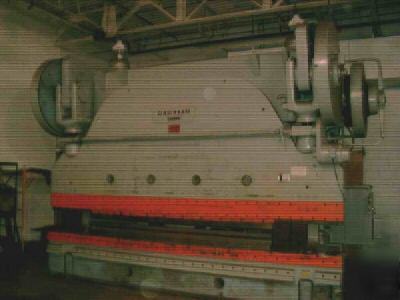

13' X 5/8" CINCINNATI-INC MECHANICAL PRESS BRAKE
New 1973, Serial No. 38812, Series 34-12
48" Automec "Auto-Gauge" Single-Axis Back Gauge
Tonnage Capacity, Bottom of Stroke...... 750 TON
Tonnage Capacity, Mid Stroke............ 480 TON
Overall Length of Bed and Ram........... 16'
Distance Between Housings............... 12'6"
Bending Capacity........................ 13' x 5/8"
Bending Capacity........................ 10' x 3/4"
Stroke Length........................... 5"
Die Space, SDAU......................... 14"
Ram Adjustment (Power).................. 6"
Throat Depth............................ 14"
Strokes Per Minute...................... 23 SPM
Motor Horsepower........................ 40 HP
Overall Dimensions, L x D............... 16'10" x 8'10"
Overall Height.......................... 12'1"
Weight, Approximately................... 98200 LBS
PRICE: F.O.B. OUR WAREHOUSE............. $49,500.00
