24 volt dc power supply 6.3 amp extremely reliable

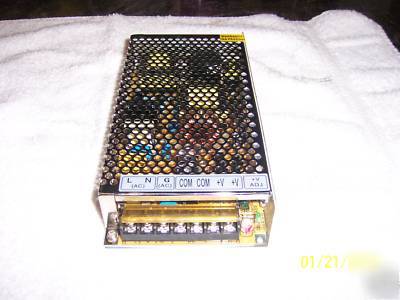

150W (6.3 amp) Metal Case Switching Power Supply with Built-in Over Voltage and Short Circuit Protections
Key Specifications/Special Features:
* High reliability with industry standards
* Built-in over voltage, over current and short circuit protections
* Voltage: 110 or 220V AC 15%
* Maximum line regulation range: 0.5
* Start-up current: 40A at 230V AC
* Maximum line regulation range: 0.5%
* Ripple and noise: <1% of output voltage
* Adjustable range of output voltage: +5% and -3%
* Start-up time: 1s (AC input: 240V and Io: 100%)
* Hold-up time: 20ms (AC input: 240V and Io: 100%)
* Over loading protection: 115 to 150% of rated power
* Over voltage protection: 130 to 150% of rated voltage
* Short circuit protection
* Input to output: 1,500V AC/5mA, 60s
* Input to ground: 1,500V AC/5mA, 60s
* Output to ground: 500V AC/5mA, 60s
* Input to output: 50m , 500V AC
* Input to ground: 50m , 500V AC
* Output to ground: 50m , 500V AC
