Dc/dc converter FE008AJ3 48V in, ±5V @1.2/0.4A outputs
* Pricing is for a single unit.
* Small case, low profile: 50.8mm x 50.8mm x 12.7mm (2in. x 2 in. x .50in.)
* Overcurrent protection: unlimited duration
* Output overvoltage protection: V01 < 7V
* Line and load regulation: <0.2% maximum
* No external filtering required
* Operating ambient temperature range: 0 C to 70 C
* UL 1950 Recognized, CSA C22.2 No. 950-95 Certified
* Dual Output: DC 5V, 1.2A and -5V, 0.4A
* Communication equipment networks with 48 Vdc inputs
* Distributed power architectures

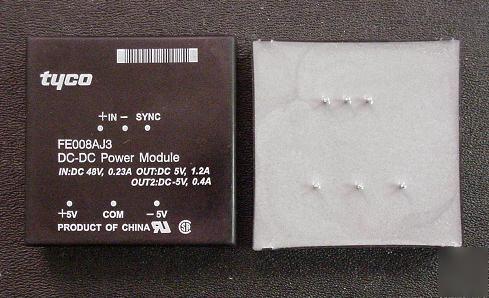

The FE008AJ3 Power Module is a DC-to-DC converter that operates from nominal 48 Vdc inputs and provides precisely regulated +5 Vdc and -5Vdc outputs. The outputs are fully isolated from the inputs, allowing versatile polarity configurations and grounding connections. Each unit provides up to 8W of output, with up to 2W from the -5 output.
Each device is encapsulated in a nonconductive case that mounts on a PC board.
