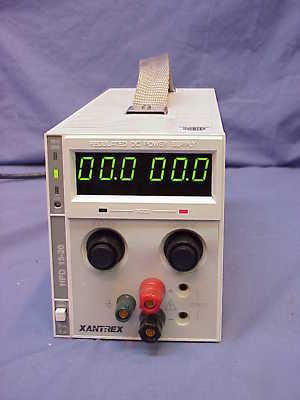

Xantrex HPD15-20 dc power supply 0-15V 20A gpib tested
This item has been tested by our Lab Technician UNDER LOAD, and it works well.
The Xantrex HPD Series provides 300 watts of reliable DC power in a quarter-rack wide chassis.
The supplies are ideal for benchtop, ATE systems and OEM applications, where wide adjustment
of output voltage or current is required in a compact package.
The HPD series uses switch-mode technology combined with linear post regulation to provide performance
comparable to an all-linear design. The supplies have excellent line and load regulation with low noise and
good transient response as a result of zero voltage soft switching and Power Factor Correction (PFC).
The series is available in singles and duals in a single package for benchtop use. Multiple units can be
rack mounted in one to four unit configurations for up to four independent 300-watt outputs for systems applications.
0-15 Volts 0-20 Amps 300 Watts
Excellent line/load regulation
Constant voltage or constant current operation with automatic crossover and mode indication
LabVIEW and LabWindows drivers compatable & Downloadable from Sorensen/Xantrex
GPIB IEEE-488 Interface with user signal auxillary connection.
M13A Locking Knobs for Front Panel Controls
http:// /products/HPD/HPD_Overview.htm for manufacturers link including Labview software downloads and manual downloads
