New rag-101 low frequency signal generator 10HZ-1MHZ

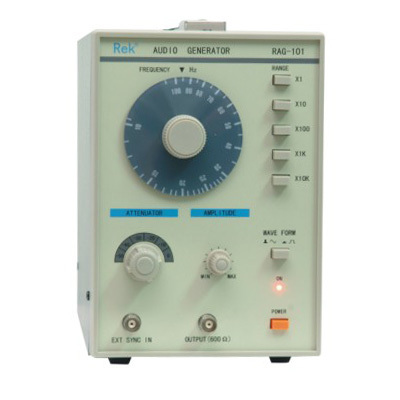

New RAG-101 Low Frequency Signal Generator 10Hz-1MHz
RAG-101 low frequency signal generator can generate 10Hz-1MHz test signal with low distortion, It attenuate gradually as 10dB from 0dB to 60dB, It is popular with manufactures, repair staffs and electronic enthusiast. Synchronization signal terminals control the consuming signal with a tiny control signal.
Frequency range:10Hz 1MHz 5 test range
Output control: 0 dB -10 dB -20 dB -30 dB -40 dB -50 dB adjustable.
1 Output voltage 5 6V virtual value
2 distortion ratio:500 Hz 50 kHz 0.05%`
3 Output smoothed line 1khz 1.5 dB ( Reference )
Synchronization characteristics:
1 Range: Frequency can be changed 1% as 1V voltage output
AC 110 V / 220 V (50 / 60 Hz), 8 W
