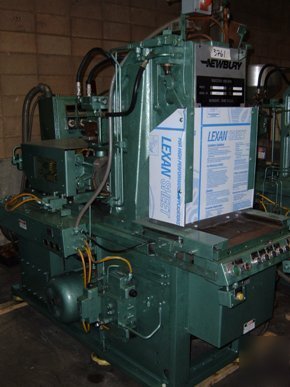

New 30 ton, 4OZ bury vertical injection molding machine
Machine Details | Item No. 3761
30 Ton, 4oz Vertical Injection Molding Machine
Tonage: 30 | Molding Capacity per Shot: 4oz | Plasticizing per Hour: 60lbs | Screw Diameter: 1 3/8" | Screw L/B Ratio: 16:1 | Screw Recovery Rate/per Second: .26oz | Screw Speed/Variable RPM 10/300 | Injection Stroke: 5" | Maximum Injection Pressure on Material: 22,350psi | Rate of Injection: 4:13CIPS | Total Heater Band Output: 6600watts | Clamping Unit | Mold Clamping Force 30 US Ton | Maximum Clamping Stroke: 6" | Platen Size: 8" x 10" | Maximum Mold Space: 8" x 10" | Hopper Capacity: 45lbs | Motor at 1200RPM is 7.5hp | Oil Tank Capacity: 37 Gallons | Pump Delivery 12-Gallon per Minute | Dimensions: 7' x 5' x 6.5'
