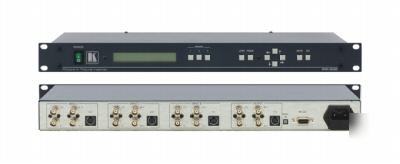

Kramer pip-300 picture-in-picture inserter 3 inputs
Manufacturer: Kramer Electronics Model/Part #: PIP-300
Kramer PIP-200XL Picture-In-Picture Inserter:
The PIP-200xl, PIP-300, PIP-400, and PIP-500 are high performance picture-in-picture inserters for up to 2, 3, 4, or 5 signals, respectively. All four models can accept and process composite video, s-Video (Y/C) and component video (YUV) signals. The PIP output can display up to 5 images simultaneously (depending on model) each of which can be individually sized and positioned. The PIP-400 and PIP- 500 also have an additional quad output mode which displays four inputs in four equal sized images. Only one model is included with this listing.
Multi-Format - Each input can be composite video, s-Video or component video.
Picture-in-Picture Options - All inputs can be displayed simultaneously, variable window sizing (1:1, 1:4, 1:9 or 1:16 each input), variable window positioning, freeze frame capability, optional window border, and text labeling available for all inputs.
Dedicated Quad Output Mode - 4 quarter screen images displayed simultaneously for both s-Video and composite video outputs (PIP-400 & PIP-500).
Multi-Standard Operation - PAL, SECAM & NTSC compatible inputs. Although not a full standards converter, a PAL image can be mixed with NTSC images and the output can be either PAL or NTSC.
Digital Comb Filter - Adaptive comb filters for composite video to S-Video conversion.
Built-in Proc Amp - Brightness, contrast, and saturation for each input.
Memory Locations - Store 2 PIP presets which can be quickly recalled.
High Resolution - Full 10 bit digital processing.
Flexible Control Options - Front Panel (with LCD and onscreen displays) and RS-232 (Windows -based control software is included).
Standard 19 Rack Mount Size - 1U for PIP-200xl & PIP-300 and 2U for PIP-400 & PIP-500.
Worldwide Power Supply - 90-240V AC
