Gentex 7139 "wall" smoke detector strobe**read warning
Before I start to descibe the item below, it is IMPERATIVE THAT YOU READ THE FOLLOWING:

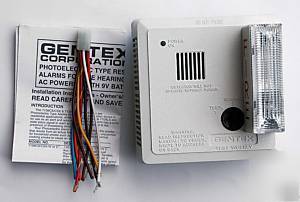

Product Description: GENTEX 7139 Wall Mount (Strobe is labeled "FIRE" Vertically-See Photo)
Hard Wired - Electrician Installation The 7139 for wall mount is a photoelectric single station smoke detector designed to give reliable early warning of the presence of smoke where both audible and visual alarms are required. This model is hard-wired so you would need an electrician to hook it up. One year limited manufacturer's warranty.
The smoke detector operates on the light scattering principle, a superior method of detection in smoldering fires. It has a pulsing LED light source and a photodiode sensor in a fully screened sensing chamber. When smoke enters the chamber, the infrared beam is deflected onto the sensor. The LED rate increases to 8 times the normal pulse rate, and after the photodiode confirms the presence of smoke for 2 consecutive pulses, it will produce the signal necessary to trip the audible and strobe light alarms.
The 7139 series provides the temporal 3 (T3) evacuation tone as a standard feature. When testing, it may take up to 16 seconds longer to go in or out of alarm.
* 177 candela rating (very bright strobe light)
* Solid state 90dB horn (very loud)
* Full function test switch (easy for you to test that it is working)
* Flashes 60 times per minute
* Meets state, federal, and ADA requirements
* Mounting hardware for ceiling
* Temporal 3 (T3) Evacuation sounding device
* Tandem connection up to 6 detectors per system
* 9V battery backup (audible alarm only)
