Eg&g - mvs-7020 machine vision strobe

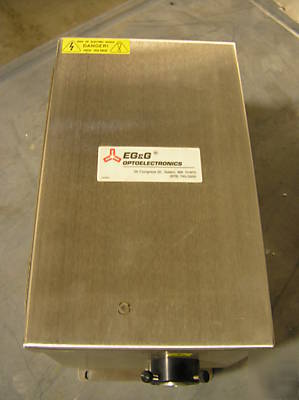

EG&G - MVS-7020 Machine Vision Strobe
MVS-7020-10 - MVS-7020-10: Fiber Optic Strobe, 90-230VAC/43W, 20 Hz, 750VDC, Stainless steel case, 9-pin D-connector
The MVS-7000 Series represents a breakthrough in light output performance and versatility in Machine Vision Strobes. These high intensity strobes incorporate EGGs latest innovation in flashlamp technology and reflector design. The MVS-7000 series delivers over 40% more light output per watt than our MVS-2020 series - taking its place as the new industry standard. The Xenon Flashlamp produces intense pulses of radiant energy covering the ultraviolet (UV), visible (VIS) and near infrared (NIR). When coupled to a CCD/CID camera system, the strobe "freezes motion" which eliminates blur and enhances image quality. Several variations of the MVS-7000 series are available, each optimized for maximum light output at a specific flash rate. External signal inputs allow you to further customize the strobe to your application. The MVS-7000 series is certified to the latest European CE directives for Safety and Emission. The universal AC power supply recognizes AC voltages from 90V to 230V ( 10%) with line frequencies from 50 - 60 Hz. The xenon flashlamp is housed in a field replaceable module. Various fiber optic bundles, nosepieces and adapters are available for sizes up to 1" in diameter.
