Cnc mill 6A 2 phase hybrid step motor drive controller

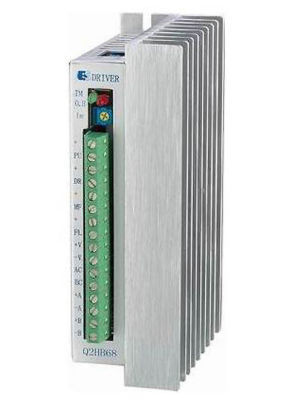

NEW 2 phase hybrid stepper motor controller
High performance 6A 80V Stepping motor driver
Certificate of Compliance No.ACS-E05208
Highest response frequency: 50Kpps
The motor phase current is reduced to approximately 50% of the set current value 100 ms after receiving the last pulse edge
Bipolar constant current chopping circuit
Driven current is adjustable continuously from 0.5A/phase to 6A/phase
Single power supply, voltage range from DC24V to 80V
Rotary switch for adjustment of the motor current
1. Please don t reverse the power input, supply voltage shouldn t exceed DC80V.
2. Input control signal is 5V, current-limiting resistance should be connected when over 5V.
3. Alarm indicator lights and the drive shuts off if the drive temperature is over 70 . It dose not work until the temperature falls to 50 . The heat sink is needed when overheat occurs.
4. 6 or 8 leads motors have to be used because of the special control circuit in the drive.
ON, double pulse: PU is positive pulse signal, DR is negative pulse signal
OFF, single pulse: PU is pulse signal, DR is direction signal
The red LED lights when overheat occurs.
The green LED lights when signal TM is active.
Adjust motor s phase current. Turning it in CCW will decrease the current and turning it in CW will increase the current.
Connected to +5V power supply. Driven voltage range from +5V to +24V. Current-limiting resistance is needed when over 5V.
With the falling edge of the signal PU, the motor executes an angular step. The input resistance is 220 . Low voltage 0-0.5V, high voltage 4-5V, pulse width>2.5 S.
D4=ON, PU is positive pulse signal
D4=OFF, DR is direction signal
Change the motor s direction of rotation. Input resistance is 220 . Low voltage 0-0.5V, high voltage 4-5V, pulse width>2.5 S
D4=ON, DR is negative pulse signal
The motor current will be cut off and the drive stops working when it effects.
The motor current is cut off automatically and signal FL is active (low voltage ) when the temperature of the drive is over 70 . The drive starts to work and the FL is cleared when the temperature falls to 50 .
Connect + to current limiting resistance of output signal and connect FL to ground. The maximum driven current is 50mA, the highest driven voltage is 50V.
Free send by register mail. Normally takes 7-10 days
Control NEMA 34 motor by Mach3 Running at 3000 rpm
