1997 kent kgs-410AHD 1640 3 axis auto surface grinder

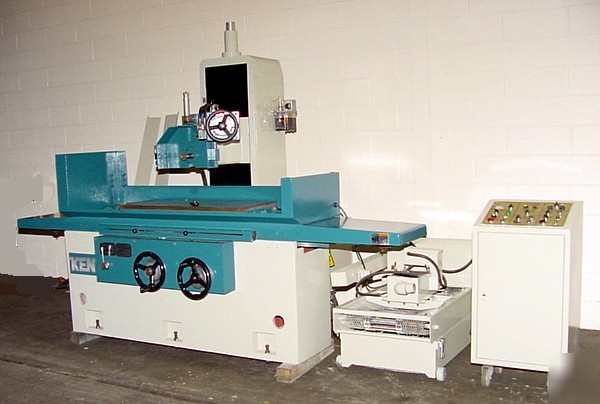

1997 KENT KGS-410AHD 1640 3 AXIS AUTO SURFACE GRINDER
16" X 40" KENT SURFACE GRINDER (COLUMN TYPE)
W/PROGRAMMABLE ELECTRONIC AUTOMATIC DOWNFEED
MODEL: KGS-410AHD S/N: 37027102 NEW: 1997
MAX. GRINDING CAPACITY ..................... 16" X 40"
DIST. FROM SPINDLE CENTER TO TABLE ............... 23"
LONGITUDINAL TABLE TRAVEL ................... 44- 1/2"
CROSS TRAVEL .............................. 17- 11/16"
VARIABLE TABLE SPEED, HYDRAULIC ....... 13' TO 73' FPM
AUTOMATIC CROSSFEED INCREMENT .......... 0.02" TO 0.5"
RAPID CROSS TRAVERSE RATE .................... 60" IPM
CROSSFEED HANDWHEEL PER GRADUATION ............ 0.001"
PER REVOLUTION ............. .................... 0.2"
AUTO DOWN FEED INCREMENT (6 STEPS) ... 0.0002" - .0016"
RAPID VERTICAL POSITIONING RATE ............... 6" IPM
SPINDLE MOTOR .................................. 5 H.P.
STANDARD GRINDING WHEEL ............ 12"D X 1.5" X 5"
APPROX. WEIGHT ............................ 8,250 LBS.
APPROX. DIMENSIONS .................. 98" X 61" X 74"H
COLUMN MOVES FOR CROSS FEED (COLUMN TYPE DESIGN)
SEPERATE ELECTRONIC CONTROL CONSOLE
ELECTRONIC PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
W/DIGITAL READOUT DISPLAY FOR VERTICAL AXIS
SPARKOUT (1 TO 9 PASSES)W/AUTO WHEEL RETRACTION
15.7" X 39.4" "O.S. WALKER HAGOU" (MADE IN NETHERLANDS)
FINE POLE ELECTRO-MAGNETIC CHUCK
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
