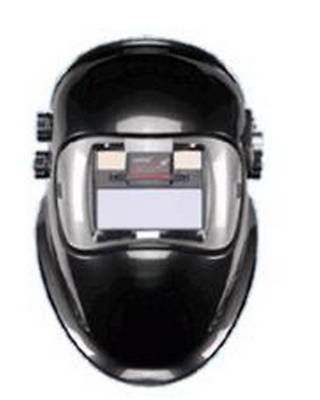

Optrel K600 satellite black auto darkening helmet
OPTREL SATELLITE WELDING HELMETS
Optrel Satellite Welding Helmet
Several LCDs provide protection. Special filters provide you with permanent protection from UV and IR radiation.
Eliminates the effects of ambient light. By moving the sensor frame the angle of detection will open up, necessary for over head welding Power supply
optrel OSE Satellite has a proven solar cell technology which ensures the supply of power.
The front cover lens equipped with an elastic gasket prevents the infiltration of gas, fume and particles.
Using this sliding switch, the opening delay can be conveniently adapted to your requirements.
This knob can be used to select the shade level required: selections can be made in two ranges between DIN 5 and DIN 9 and 13. Therefore, a wide range of applications is opened up.
This push button can be used to change into grinding mode (DIN 4) without taking off the helmet.
(Automatically reset after approx. 10 minutes.) Range of shade levels
This sliding switch can be used to select the range of shade levels, i.e. between DIN 5 and 9 or DIN 9 and 13.
To meet all different welding applications on different welding places you have the possibility to adjust the sensitivity to your need.
Cartridge type 2 shade level settings of DIN 4/5 and DIN 4/9 - 13 continuously variable manual settings between DIN 5-9 and DIN 9-13
All shade cartridge controls and settings are conveniently on the outside!
Variable shade range selection and adjustment "5-9 or 9-13"
Selectable On/Off shade 4, grinding function
Spherical cover plate for superior optical clarity
2 Year Warranty on ADF cartridge
Controls for helmet as shown schematically above.
Several LCD's and special filters provide permanent shade 14 protection from dangerous UV and IR radiation, even in the unlikely event of total filter failure
Variable Shade 5-9 or 9-13
