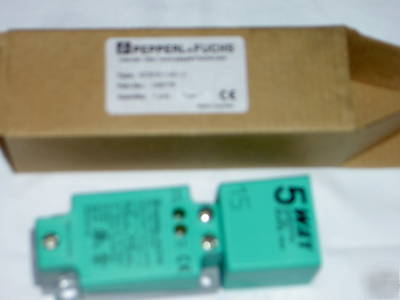

New proximity sensor pepperl+fuchs NCB15+U4+u brand
For sale 1-Each Proximity Sensor NCB15+U4+U
15 Flush N.O. or N.C. 200 Hz VDC/30 Hz VAC PBT w/metal base Terminal housing
SUPPLY VOLTAGE 20-250 VAC/20-300 VDC
LEAKAGE CURRENT (OFF-STATE) 1.7 mA
OUTPUT Suffix U Normally open or normally closed
VOLTAGE DROP AT IL (MAX.) 7 V
REVERSE POLARITY PROTECTED Nonpolarity sensitive
LED INDICATION See dimension drawings
AMBIENT TEMPERATURE -13 F to +158 F (-25 C to +70 C)
