Fireye C9000 series ultra violet flame scanner C9501N
Our Asset #:KSC191 - 68.1-36 Qty available:36

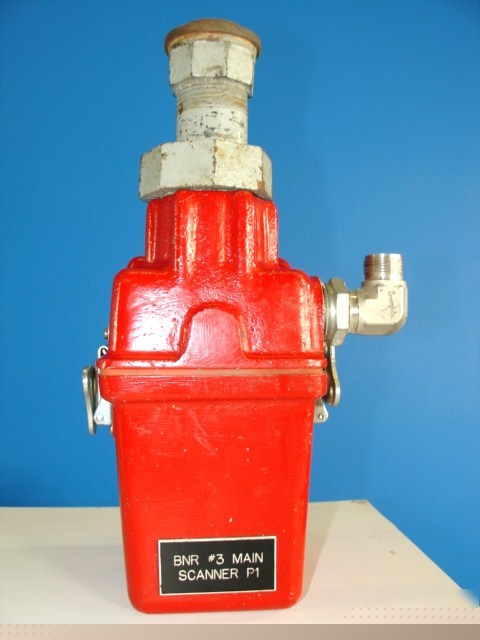

FIREYE C9000 SERIES Ultra Violet Flame Scanner C9501N
Est. Rigging fees $35 per 1,000 lbs: $35.00 Est. Packaging:
Condition: 5. USED: Looks better than good to us Guaranty: 3. 10 day replacement FOB our whs
Model: N/A Serial #: N/A Year:
http://www.fireye.net/pdf/detector/65-8037-01.pdf
The Fireye C9501N Flame Scanner provides an effective means of flame monitoring in an application where a scanner can be mounted in a direct line of sight from the flame to be monitored. The C9501N Scanner is used in conjunction with Fireye R9500, R9100, R9101, R9103 and R9105 Flame controllers.
The C9501N Ultraviolet Flame Scanner responds to ultraviolet (UV) radiation wavelengths between 1850 and 2650 angstroms, which are emitted by natural gas and light oil (No.2) flames.
The C9501N Flame Scanner incorporates an ultraviolet sensitive detector tube, electronic circuitry to generate and transmit an output signal, a quartz viewing window and a mechanical light-blocking chopper, which is used to test detector tube status.
The scanner chassis is mounted in a weatherproof cast aluminum enclosure. The base casting and cover casting fit together and are secured with spring-loaded, half turn fasteners. The base casting has a 1 inch NPT (National Pipe Thread) tapping for mounting onto a nthreaded sight pipe. The base also includes a 3/4 inch NPT tapping for connection of a purge air line
Length: 5" Width: 6" Height: 11"
a. Est. Wt. each: 5LBS b. Est. pkging wt: 3 c. Est. total wt: 8
