900 line optical rotary encoder with quadrature output

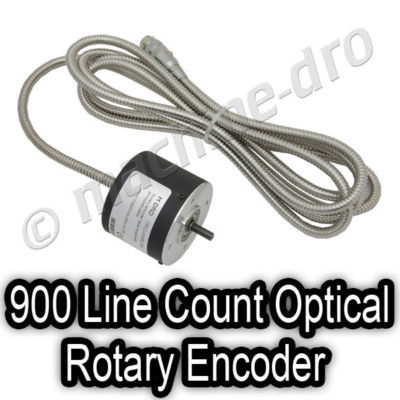

900 Line Count Optical Rotary Encoder with Quadrature Output - Face Mount Type..
A face mounting optical rotary encoder with quadrature output. The ANRE-FM-900 incremental type encoder has 900 line counts (3600 pulses per revolution). Fitted as standard with 3 metres of armoured cable and 7-way round connector. Directly compatible with our rotary encoder display consoles. Offering a straight forward and precise angle measuring solution.
The ANRE-FM-900 encoder is compatible with the ANDC rotary display consoles. The encoder is supplied fitted with a 3 metre armoured cable which will plug directly into these consoles. Only a basic parameter needs to be entered to configure the console. This allows direct angle measurement reading to be displayed, in either decimal degrees or degrees, minutes and seconds.
The ANRE-SF-900 has an angle resolution of 0.1degree, when used with the ANDC rotary consoles.
Face Mounting Rotary encoder- Technical Data.html
