> 06-01926 - rosenberger mcx to bnc rg-179 coax cable 20"
06-01926 - rosenberger mcx to bnc rg-179 coax cable 20"

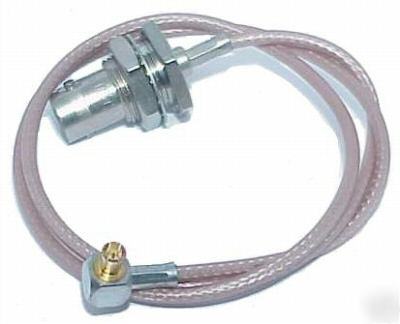

20" Long - Rosenberger MCX-Plug to BNC-Female Coaxial Cable
RG-179 mil-spec grade coaxial cable. Impedance 75-Ohm, 28.5AWG Solid .012" Copper center conductor with tinned copper braid (95% Shield Coverage). Frequency range with attached connectors... DC to 1GHz (typical).
75-Ohm MCX connectors are similar to 50-Ohm MCX connectors. They transmit digital signals with high bit rates. 75-Ohm BNC connectors operate at frequencies up to 1 GHz, the small impedance deviation is negligible for any application. A typical VSWR of 1.15 at 1 GHz is achieved. Both 50 & 75 Ohm BNC connectors are inter-mateable without any restrictions.
* RoHS compliance not verified.
