Spot facer facing adapter cutter inverted tool holder
Item ...................... Spot Facer cutter arbor tool holder adaptor for reverse counterbore applications. You push this adapter through your hole to be machined, then slide the cutter on from the back side of the part, it twist locks in to place, the cutters for it are LEFT HAND Cut even when your mill spins right hand. This holder does not have any cutters with it.
Manufacturer ........ Eclipse Twist Lock Tool Co.
Model ................... It says 7/16 x 3/8 424-2220 on it
Type ...................... High speed steel
Diameter ............... .374" out near the end and back towards the shank for 1.070", the very tip measures .374" diameter and .302" across the flats, the main body after the 1.070" measures .433" The groove is .201" in length. Distance from the end of the holder to the beginning of the groove measures approx. .237"
Shank .................... Morse Taper #2 MT2 2MT

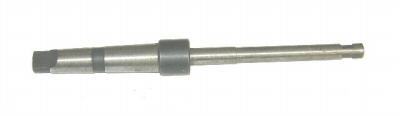

This is not an actual photo but it is pretty much identical to the one in the photo, I have had a few of them in the past that were pretty much all the same so I have used this same photo for each one.
