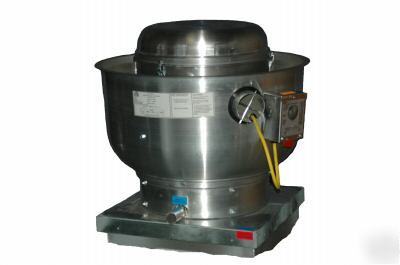

Restaurant upblast exhaust fan ventilator 1000 cfm 1 ph
High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (single phase only), disconnect switch and 11-3/4" wheel. Exhaust Motor:
Model 48A17O11036, 0.333 HP, 1 Phs, 115 V, 4.1 FLA, ODP (Open Drip Proof)Exhaust Performance:
Housing constructed of heavy gauge aluminum Centrifugal backward inclined, non-overloading wheel Weatherproof safety disconnect switch Grease spout welded to housing Vibration isolators Continuous duty, thermal protected, permanently lubricated, direct drive motor Forces fresh air through motor to ensure long motor life Variable Speed Control on Single Phase Units Only. (VFDs required to adjust speed for 3 phase versions) Corrosion resistant fasteners Thermal overload protection High heat operation (400 F) Rated for restaurant and general ventilation applications Grease classification tested
* Grease Cup for kitchen-duty centrifugal exhaust fans, Box Dimensions 15-3/4 L X 5-1/16 W X 3-3/4 H (18 GA.)
VXD33 exhaust sound data @ 1672 RPM:
