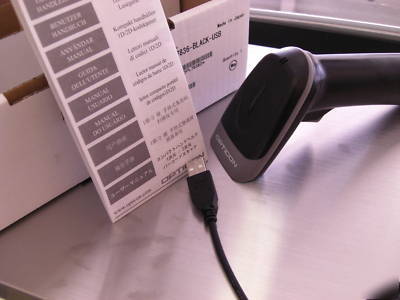

New opticon opl-7836-black-usb laser barcode scanner
This link takes you download the universal configuration guide to configure your Opticon scanner, VERY EASY configuration process.
http://www.ers-online.co.uk/files/pdf/UniversalMenubook.pdf
Visual: 1 LED (red/green/orange)
USB: Ver. 1.1, HID/VCP, USB-A connector
Voltage requirement: 5V 10%
Current consumption: Max. 150mA
Light source: 650 nm visible laser diode
Scan method: Bi-directional scanning
Trigger mode: Manual, auto-trigger
Reading pitch angle: -35 to 0 , 0 to +35
Reading skew angle: -50 to -8 , +8 to +50
Reading tilt angle: -20 to 0 , 0 to +20
Curvature: R>15 mm (EAN8), R>20 mm (EAN13)
Min. resolution at PCS 0.9: 0.127 mm / 5 mil
Depth of fi eld: At PCS 0.9, Code 39
50 - 500 mm / 1.97 - 19.69 in (1.0 mm / 39 mil),
30 - 300 mm / 1.18 - 11.81 in (0.5 mm / 20 mil),
30 - 240 mm / 1.18 - 9.45 in (0.25 mm / 10 mil),
30 - 130 mm / 1.18 - 5.12 in (0.15 mm / 6 mil),
40 - 100 mm / 1.57 - 3.94 in (0.127 mm / 5 mil)
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/
NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128
(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5,
Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/
Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authority
2D code: Composite codes, MicroPDF417, PDF417
Temperature in operation: -5 to 50 C / 23 to 122 F
Temperature in storage: -20 to 60 C / -4 to 140 F
Humidity in operation: 20 - 85% (non-condensing)
Humidity in storage: 10 - 90% (non-condensing)
Ambient light immunity: Fluorescent 3,000 lx max,
Direct sun 50,000 lx max, Incandescent 3,000 lx
Drop test: 1.5 m / 5 ft drop onto concrete surface
Vibration test: 10 - 100 Hz with 2G for 30 min
