Lucas-milhaupt braze 380 low t brazing ring 38% silver

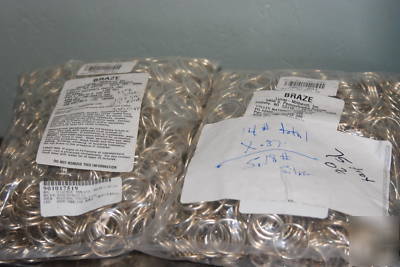

New 2 bags (one bag is unopened 1000 rings, then other bag has 980 rings) of Braze 380 silver brazing rings, .886ID x 1.067" OD (wire.094DIA), alloy 32-380 Braze 380, 1200 degree melting,
TOTAL WT of both bags: 14lb 0oz See their website for spec's and MSDS,
Other Elements (Total) 0.15% Max
Melting Point (Solidus) 1200 F (650 C)
Flow Point (Liquidus) 1330 F (720 C)
Brazing Temperature Range 1330 F - 1500 F (720 C - 815 C)
Electrical Conductivity (%IACS) 18.0
Electrical Resistivity (Microhm-cm) 9.50
*IACS = International Annealed Copper Standard
Braze 380 is a good general purpose low temperature brazing filler metal for use in cadmium-free brazing applications, such as air conditioning and refrigeration which involve the joining of steels, copper, copper alloys and nickel alloys.
Braze 380 is a free-flowing, low temperature filler metal with excellent wetting characteristics of most ferrous and non-ferrous base metals, and is a good substitute for cadmium-bearing filler metals with similar silver content. The material is best suited for narrow gap situations (0.001" - 0.005" radial joint clearance). Handy Flux , Handy Flux Type B-1 or dispensable Handy Flux Types D or DB should be used with this filler metal.
The properties of a brazed joint are dependent upon numerous factors including base metal properties, joint design, metallurgical interaction between the base metal and the filler metal.
Low Carbon Steel 55,000 - 65,000 8.00 - 13.0
304 Stainless Steel 80,000 - 85,000 2.00 - 5.00
Copper 31,000 35,000 25.0 - 35.0
