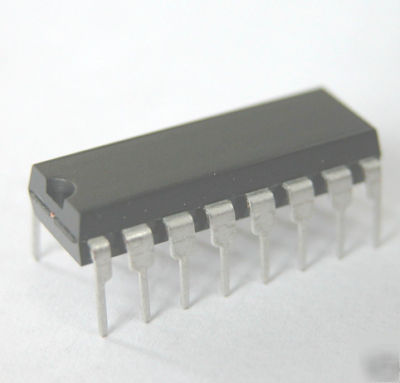

Ic chips: CD74HCT4046AE loop high speed cmos logic vco
- Up to 18MHz (Typ) at Vcc = 5V
- Minimum Center Frequency of 12MHz
- Choice of Three Phase Comparators
- Excellent VCO Frequency Linearity
- VCO-Inhibit Control for ON/OFF Keying and
for Low Standby Power Consumption
- Operating Power Supply Voltage Range
- VCO Section . . . . . . . . . 3V to 6V
- Digital Section . . . . . . . 2V to 6V
- FM Modulation and Demodulation
- Frequency Synthesis and Multiplication
- Data Synchronization and Conditioning
- Voltage-to-Frequency Conversion
