Hp/agilent 10780F/C01 laser fiber optic remote receiver

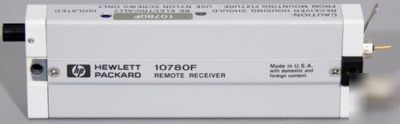

Hewlett Packard / Agilent 10780F Fiber Optic Remote Receiver with Option C01
Specifications are from Agilent and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
List Price is: $1,016.00 NEW from Agilent (with a 6-week delivery time)
Link to the Datasheet: Agilent Laser Interferometer Optic and Laser Head Datasheet
The 10780F provides slightly less sensitivity then the 10780C, but can improve system performance by enabling you to mount heat-dissipating receiver electronics away from the measurement area. Hence, higher measurement stability and the resulting accuracy and repeatability are obtained. The fiber-optic cable used to attach the remote sensor to the receiver electronics allows design flexibility and easier access to the receiver gain adjustment.
Typical Power Requirements: +15 volts at 136 mA
Maximum Sensitivity: 2.2 W (10780F with 2-m cable, becomes 5.0 W with a 10-m fiber cable0>
Heat Dissipation: 0.0 W for remote sensor, 2.0 W typical for receiver
Output Signal: Differential square wave at Doppler-shifted split frequency (100 kHz to 7.2 MHz)
Fiber-Optic Cable Length: 2 m standard, 10 m maximum recommended.
(10780F is self aligning when mounted to the 10715A, 10716A, 10717A, 10719A, 10721A, 10735A, and 10736A.)
