13.8V 60W buck boost regulator - maintain volts SR13860

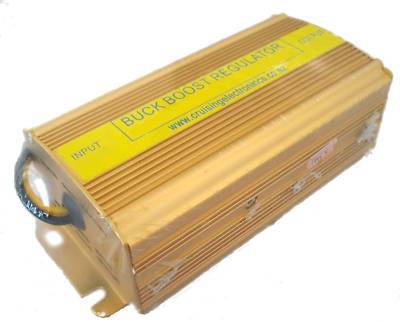

***** Cruising Electronics now have available this Buck-Boost Voltage Regulator/Converter *****
This Buck-Boost Regulator provides a fixed output of 13.8v from your varying battery input voltage of 8 to 36 volts!!
With just moderate use, a 12v (nominal) lead acid battery quite soon drops below 12.4 volts or so if there is no charging source attached.
There is still useable energy available, but mobile radios can require a minimum operating voltage of around 12.6v or more.
At lower battery voltages your connected mobile radio may reduce output power, or your transmitted output become distorted.
This Regulator will elevate the low battery voltage to the required or expected 13.8v, allowing full power operation for longer.
Please note the unit does not create energy, it takes more current from the battery and converts this to the required higher voltage.
Of course, if your vehicle has a 24v supply, the Regulator will drop the voltage to allow you to run your 12v Radio.
This rugged Converter meets all the above requirements and is virtually indestructible with it's coated steel case and electronic protection
PLUS it's covered by our Cruising Electronics 12 month repair or replacement warranty
Input Voltage Allowable 8 to 36 volts, DC only
Output Voltage Fixed at 13.8 volts DC, 2%
Over-Voltage Output Protection Circuit - if circuit failure causes output voltage to rise, output voltage turned off
Current Limiting will occur at 5 Amps - do not use with a device attempting to draw greater than 5 Amps
Output Voltage Ripple Factor < .7%
Output and Input Short Circuit Protection
Input/Output Isolation 500 volts
Ambient Temperature allowable from -20 to +80 degrees C (-4 to 176 F)
Standby Current (no output load) < 50mA
Dimensions 124 x 70 x 46 mm (4.8 x 2.7 x 1.8 in)
All specifications subject to change or design improvements without notice
Need more current capacity or different output voltage? Check out our other listings for 10 amp and 12 volt models
