Yr 2000 bridgeport series ii special vertical mill, dro

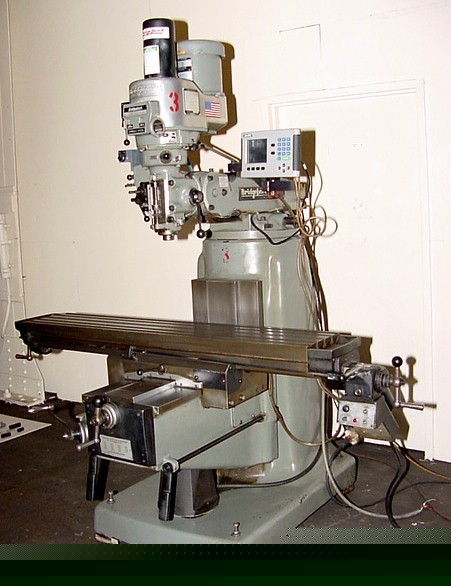

Yr 2000 BRIDGEPORT SERIES II SPECIAL VERTICAL MILL, DRO
MODEL: SERIES II SPECIAL, S/N: 8439-S, NEW: 2000
TABLE SIZE.................................... 11" X 58"
MAXIMUM WEIGHT OF WORKPIECE................... 1,500 LBS
LONGITUDINAL TRAVEL (MANUAL)...................... 33.5"
LONGITUDINAL TRAVEL (POWER)....................... 32.5"
CROSS TRAVEL........................................ 15"
KNEE TRAVEL......................................... 12"
RAM TRAVEL.......................................... 17"
QUILL TRAVEL......................................... 5"
INFINITELY VARIABLE SPINDLE SPEEDS...... 60 TO 4,200 RPM
POWER QUILL FEEDS (3)............ 0.003", .006" & .0015"
SPINDLE TAPER....................................... R-8
THROAT, MINIMUM TO MAXIMUM.................... 6" TO 23"
APPROX. WEIGHT................................ 3,655 LBS
APPROX. FLOOR SPACE............................. 7' X 10'
- ACU-RITE 2-AXIS DIGITAL READOUT
- BRIDGEPORT POWER FEED ON X AXIS (TABLE LONGITUDINAL)
- 2 HP CONTINUOUS DUTY / 3 HP 30 MIN. DUTY MILLING HEAD
