Faulhaber 3056 mini motor harmonic drive csf flex shaft

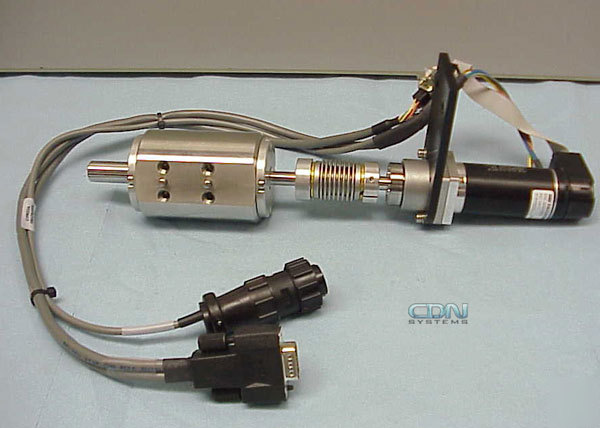

Faulhaber 3056 Mini Motor Harmonic Drive CSF Flex Shaft
NOTE: REFER TO IMAGE 2 WHEN READING SPECIFICATIONS, OVERALL LENGTH: 11-1/2"
* INDUSTRY STANDARD LINE DRIVER IC
* TERMINAL RESISTANCE, PHASE-PHASE: 6,6
* FRICTION TORQUE, STATIC: 0,91 mNm
* DIRECTION OF ROTATION: ELECTRONICALLY REVERSIBLE
* MANUFACTURER: HARMONIC DRIVE SYSTEMS INC.
* MODELS & SYMBOLS: GEAR HEAD (FLANGE OUTPUT TYPE) 2XH-F
* SPECIAL SPECIFICATIONS: SP
* MAX. INPUT SPEED: 8500 RPM
* RATED TORQUE @ 2000 RPM: 0.6 Nm
