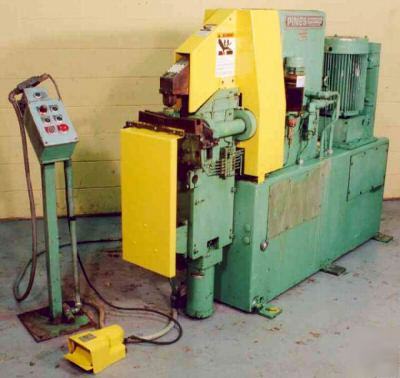

Pines model #3T vertical hydraulic bender
PINES MODEL #3T VERTICAL HYDRAULIC BENDER
SERIAL .................................... 44361-80164
MODEL ..................................... 3T
NEW ....................................... 1980
CAPACITY .................................. 3 TONS
NON-FERROUS TUBING (25,000 PSI) ........... 1" X .083" WALL
MILD STEEL TUBING (40,000 PSI) ............ 1-1/4" X .065" WALL
STAINLESS STEEL TUBING (60,000 PSI) ....... 1-1/4" X .049" WALL
SQUARE TUBING, MILD STEEL ................. 1" X .065"
ROUND BAR (MILD STEEL) .................... 3/4"
SQUARE BAR (MILD STEEL) ................... 9/16"
CENTERLINE RADIUS ......................... 4-1/2" MAXIMUM
BEND ANGLE WITH NORMAL TOOLING ............ 140 DEGREES MAXIMUM
BEND ANGLE WITH SPECIAL TOOLING ........... 165 DEGREES MAXIMUM
PRODUCTION SPEED .......................... 1500 BENDS PER HOUR
AUTOMATIC 10 STATION ANGLE BEND SELECTOR .. YES
KNEE MOUNTED WING DIE ..................... YES
CUSHION CYLINDER .......................... YES
OIL COOLER ................................ YES
MOTOR ..................................... 20 HORSEPOWER
