Omega ph panel meter for ph measurement DP24-ph

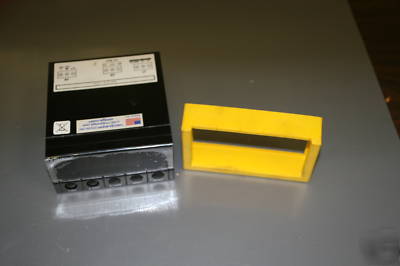

Up for sale is an Omega pH Panel Meter for PH measurement , model DP24-PH. I believe it is new, still has shrink wrap. I got it from the lot of spare parts. Actual Photo.
Analog Output: Non-isolated - fixed range 0-14 pH =4-20mA
Operating Temp: 0 to 60 C (32 to 122 F)
Storage Temp: -40 to 85 C (-40 to 185 F)
Relative Humidity: 95% @ 40 C, non-condensing
Temp. Compensation: Manual fixed resistors; Automatic 1000 RTD
Display: 4 digit, red LED, 14.2 mm (0.56") high
Voltage: 115 Vac 15% standard (230 Vac or 10-32 Vdc optional)
Power Consumption: 6 watts max.
Dimensions: 96 W x 48 H x 104 mm D (3.78" x 1.89" x 4.10")
Panel Cutout: 92 W X 45 mm H ( 1 /8 DIN, 3.62" x 1.77")
Depth Behind Panel: 100 mm (3.94")
