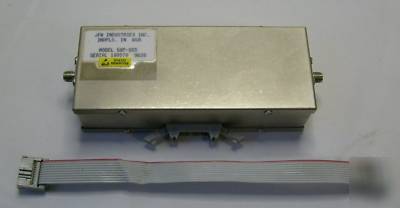

Jfw ind. 50P-955 50 ohm sma programable attenuator
JFW IND. 50P-955 50 OHM SMA PROGRAMABLE ATTENUATOR
PURCHASED FROM A FAILED BUSINESS
* Frequency Range 50-200 MHz
* Impedance 50 Ohms nominal
* Attenuation Range 0-25.5 dB in 0.1 dB steps
* Attenuation Steps .1, .2, .4, .8, 1.6, 3.2,6.4, and 12.8 dB
* Attenuation Accuracy .1 dB 0-2 dB .2 dB 2-8 dB .3 dB 8-25.5 dB
* Insertion Loss 2.0 dB nominal 4.0 dB maximum
* Switching Speed 10 microseconds
* DC Supply +5 Vdc @ 300 mA
* Control Logic (8 Lines) TTL Low for Thru Path TTL High for Attenuation
* DC Connector 3M #3793-5303
CLICK ON LINK BELOW FOR TTL PIN-OUTS
CLICK HERE FOR PDF INFORMATION!
************************************************************************
