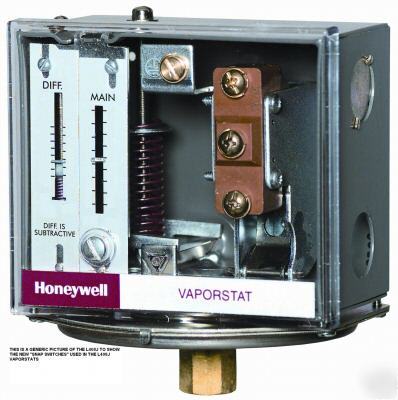

Honeywell L408J1009 0-16OZ. vaporstat spdt mercury free
Provide operating control and automatic high limit protection for vapor heating systems with pressures up to 4 psi (8 kPa). All models have Microswitch snap switches to open or close a circuit on a pressure rise.
Stainless steel diaphragm for use with liquids, air, noncombustible gases, ammonia, oxygen, distilled water and similar media.
Clear plastic cover allows observation of the pressure settings.
Mount using hexagonal fitting with 1/4 in. NPT internal threads for direct mounting to the 14026 Steam Trap (siphon loop), which is NOT included.
Vaporstat Controllers, 0 oz/in2 to 16 oz/in2
Provide operating control and automatic limit protection for pressure systems with pressures up to 4 psi (8 kPa)
1/4 in. NPT internal thread or surface mount through back of case
SPDT make R-W, break R-B on pressure rise
Pipe Connections, Main or High Pressure
5 1/8 in. high x 4 1/2 in. wide x 4 1/2 in. deep.
130 mm high x 114 mm wide x 114 mm deep.
Switch Contact Ratings (120 Vac)
8.0 AFL, 48.0 ALR, 10.0 A resistive
Switch Contact Ratings (120 Vdc)
2.4 AFL, 24.0 ALR, 5.0 A resistive
Switch Contact Ratings (240 Vac)
5.1 AFL, 30.6 ALR, 5.0 A resistive
Switch Contact Ratings (240 Vdc)
1.0 AFL, 10.0 ALR, 2.0 A resistive
Listed: File No. MP466, Guide No. MBPR
Approvals, Industrial Risk Insurers
