Conquest BO111 13 spindle line boring machine usa made

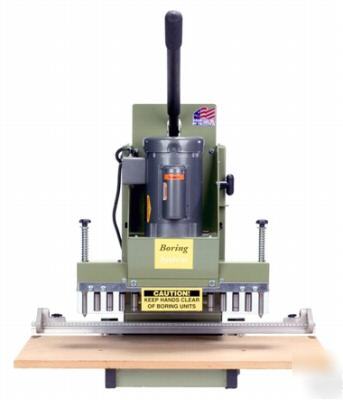

This is a Brand New in the Box Conquest BO111 "Mini 13" Spindle Line Boring Machine
* Heat Treated Steel Helical Gears (not plastic!)
* 8" Throat Opening (capacity to drill from edge of board).
* TEFC BALDOR Motor, Dust Protected & 3,450 rpm For Quick, Easy & Clean Drilling
* Low Cost True Industrial Duty Machine For The Serious Cabinet Builder.
* 30" fence capacity with two flip stops. (optional 30" extensions).
* 13-spindle line boring head with steel heat treated helical gears.
* 32mm centers, distance between first & last drill = 15".
* TEFC Baldor motor, 3,450 rpm, hp (US hp rating) 115 volt (9.6 amps) 60 Hz Single Phase.
* Accepts bits with 10mm shank, one flat side, 6 lefts & 7 rights.
* Machine weight = 132 lbs & 170 lbs crated.
* Spring Loaded Hold Downs $119.00 per pair
* 30" Fence extension $27.00 ea
* Flip Stops $40.00 per pair
