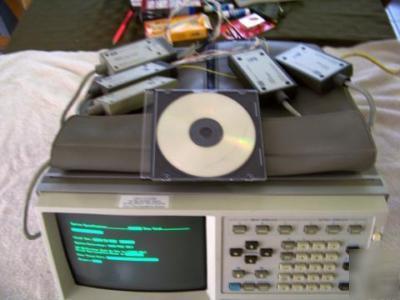

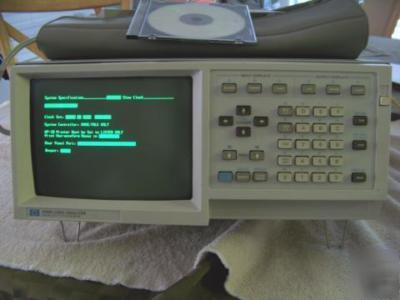

@@ hp - agilent 1630D logic analyzer with 5 pods @@
HP 1630 family of logic analyzers consists of three models designed to meet the needs of digital design and test engineers. The A and D models differ only in channel width-the The Agilent HP 1630D, Logic Analyzer, has also been called the "general purpose tool for the modern designer" and for good reason! State listings and waveforms provide displays and windowing of address, data, status, and control line activity. The HP/Agilent 1630D is a General purpose Logic Analyzer. It provides state, timing and system performance analysis in one instrument.
SPECS: *** 25 MHz speed *** Up to 43 channels *** 1K memory *** Three clocks *** Demultiplexing *** Full compare mode. The HP 1630D facilitates hardware analysis and debug of 16-bit microprocessors. The HP 1630A's measurement capability is also available in the HP 1630D, but with additional state and timing channels to meet the needs of 16-bit microprocessors. Total channel count is increased to 43, where eight or 16 of the channels can be used for high-speed timing analysis. Glitch triggering and capture are also increased to eight channels.
