Wenzel 100MHZ voltage controll crystal oscillator ocxo

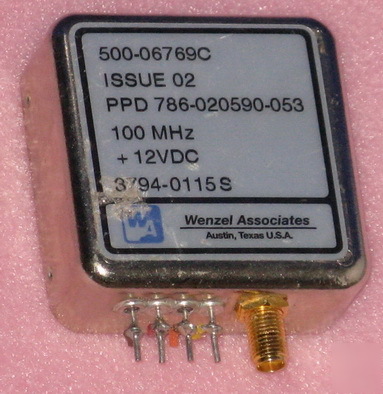

Wenzel 100Mhz Voltage Controll Crystal Oscillator OCXO
The item is a 100 Mhz ovenized voltage controlled crystal oscillator.
* +7 DBM, SMA female connection,
* Brand model , 500-06769C PPD 786-020590-053
* Tuning range approx. +-5 Khz,
* Designed for PLL or fine tuning adjustment,
* Output: +3 dBm min into 50 ohms, +7 dBm typical
* Oper. Temp. Range: -40 degree C to +65 degree C
* Temp Stablilty & Aging: +-5.0 ppm max for 17 years, +-5 x 10(-7) typical for temp stability
* Supply Voltage: +12 Vdc (+-5%)
* Current: 350 mA max at turn on
* Power Consumption: 4.2 Watts max at turn on, 1.2 Watts typical stabilized at +25 degree C
* Voltage Control: +-3 x 10 (-6) typical for 0 to +5 volts, Negative Slope
* Phase Noise: -115dBC - 100Hz, -139dBC - 1KHz, -151dBC - 10KHz, -154dBC - 100KHz
