> Omron cnc absolute encoder servo step motor controller
Omron cnc absolute encoder servo step motor controller
Cnc Absolute encoder for postion controller
Absolute encoder uses gray code to describe each position, so position data is not lost when power is cycled.

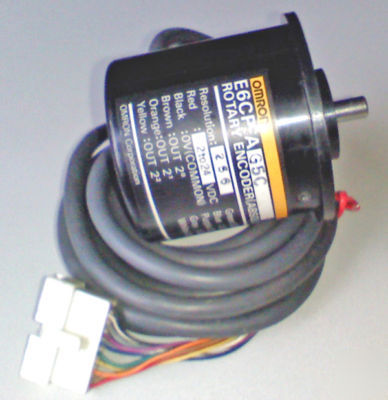

Series E6CP-AG5C, Single Absolute, 256 PPR, NPN Open Collector
DIA 50mm X 50mm Long Shaft Dia is 6mm x 11mm Long
Menu : http://www.ia.omron.com/data_pdf/data_sheet/e6cp-a_dsheet_csm496.pdf
Web :http://www.ia.omron.com/product/item/e6cp1010a/index.html
12 VDC -10% to 24 VDC +15% (ripple (p-p): 5% Max.)
256 P/R (Code No. 0 to 255) 8 bit
(DC) 0.4 V Max. (load current:at 16mA Max.)
Output code incremented by clockwise rotation
Rise time of output: 1 us Max. (Output voltage: 16V, load resistance: 1k OHM, cable length: 2m Max.)
Fall time of output: 1 us Max. (Output voltage: 16V, load resistance: 1k OHM, cable length: 2m Max.)
Room temperature: 0.98 mN.m Max.
20 M OHM Min. at 500 VDC between charged parts and the case
500 VAC at 50/60 Hz for 1 minute between charged parts and the case
1000m/s2 for 3 times each in X, Y, and Z directions
Emission Enclosure: EN55011 Group 1 classA
Emission AC mains: EN55011 Group 1 classA
Instruction manual, servo mouting bracket and coupling
The first is 13.9 the another is 6.3per each
Will send by register mail. Normally takes 7-10 days
