Hp 3325A synthesizer function generator -calibrated-

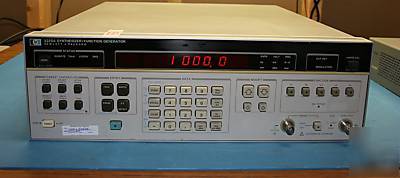

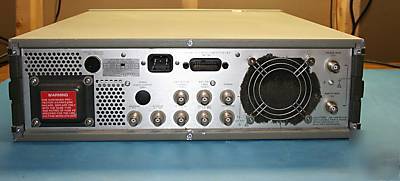

HP Agilent 3325A Function Generator
The HP 3325A Synthesizer/Function Generator is an uncompromising, high performance synthesizer with 11 digit resolution, a function generator with precision waveforms, a wideband sweeper, and a fully HPIB programmable systems instrument.
* Versatile and precision synthesizer
* Provides frequencies from 1 Hz to 21 MHz (sine), 11MHz (square), and 11kHz (triangle, ramps)
* Frequency resolution to 1 Hz below 100 kHz and 1 MHz above 100 kHz are provided by the 11-digit display
* Excellent choice for ATE Systems, completely HP-IB programmable
* Includes a log/linear sweep function with variable sweep time and marker out
* External AM and phase modulation
* Variable phase offset when connected to another 3325A
* Output is rated at 1 mV to 10 V p-p into 50-ohms
* Frequency stability for the basic unit is an aging rate of 5x10E-06/year
Contact details: ****@midwestate.com
