Heavy-duty shielded electrical gen. purpose transformer

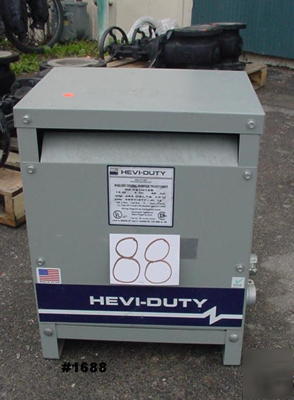

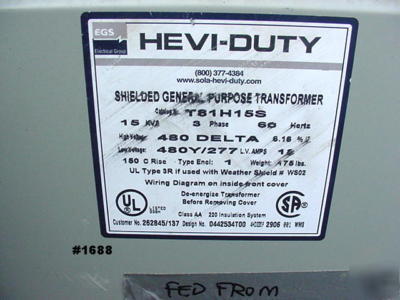

HEAVY-DUTY SHIELDED GENERAL PURPOSE TRANSFORMER, #1688
15 KVA.......3 PHASE.......60 HERTZ
HIGH VOLTAGE: 480 DELTA 6.18 %
LOW VOLTAGE: 480Y/277 L.V. AMPS 12
150 C RISE.....TYPE ENCL: 1.....WEIGHT: 175 LBS.
UL TYPE 3R IF USED WITH WEATHER SHIELD # WS02
WIRING DIAGRAM ON INSIDE FRONT COVER
CLASS AA 220 INSULATION SYSTEM
THIS UNIT LOOKS NEW, HOWEVER IT MAY HAVE BEEN USED. SO WE ARE SELLING IT AS USED.

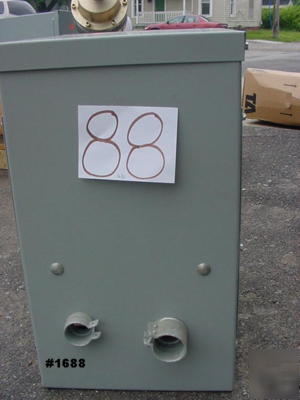

OVERALL DIMENSIONS: 23" HIGH X 17.5" WIDE X 13.5" DEEP
