Alto-shaam 6.10 electric combination oven/steamer

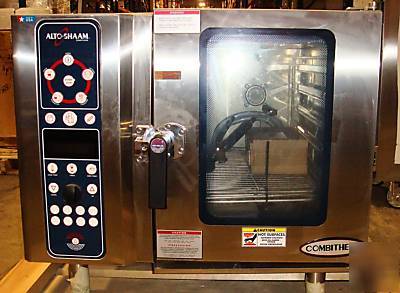

ELECTRIC COMBINATION OVEN/STEAMER
20 gauge, non-corrosive stainless steel construction is insulated with 1-1/2" (40mm) thick insulation. Heavy duty oven
door with free-flowing air space between double-pane oven windows to radiate less heat and reduce energy loss. Door
is hinged right, opens to a 225 angle, and includes one (1) self-adjusting, rotary door latch. Interior of door is
furnished with an interlock switch to deactivate the heating elements and fan when the door is opened. Molded silicone
rubber gasket seals the oven door and is completely removable for easy cleaning and replacement. The oven is
supported by four (4) adjustable legs and is furnished with one (1) hand-held hose for adding water to pans, rapid
product cooling, and interior oven cleaning.

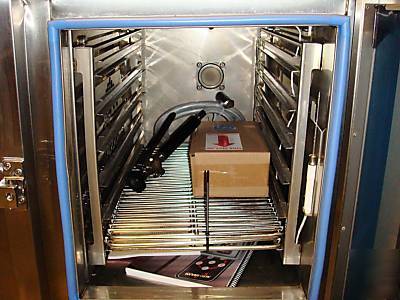

Three (3) stainless steel wire shelves
Stainless steel side racks with six (6) non-tilt pan support rails:
Broiling, steaming, baking, and roasting with one piece of
equipment adds convenience, saves space, and helps
reduce oven hood length requirements.
Fully automatic electronic cooking controls with single key
program selection and a large selection of language choices
for control panel display instructions.
"Closed System" technology provides more steam and heat
retention at a lower operating cost to offer faster cooking
times with better product flavor, color, and texture.
Automatic cleaning and steam boiler fast-flush in boiler
equipped models provides easier equipment maintenance.
Deluxe programmable control with memory for up
each with up to 20 cooking steps.
Door stop safety feature delays full opening to protect
Electronic diagnostic program for service assistance.
Two-speed fan allows more delicate baking and browning.
28-7/8" x 44" x 31-1/2" (733mm x 1120mm x 802mm)
17-3/4" x 23-1/2" x 21-1/16" (450mm x 597mm x 535mm)
FULL-SIZE PANS: Six (6) 20" x 12" x 2-1/2"
HALF-SIZE SHEET PANS:* Six (6) 18" x 13" x 1"
*Additional wire shelves required for maximum capacity
Oven must be installed level. Hood installation is required.
Install water supply shut-off valve and back-flow preventer.
208 3 50/60 3 Wire plus ground 23.5/ph 8.4
at 240 AWG 8 OR LARGER 27.0/ph 11.2
INDIRECT WASTE PIPE WITH AIR GAP
: 3/4" NPT LINE PRESSURE: 30 to 90 psi
: less than 0.8 ppm CHLORIDE: less than 70 ppm
: 5 to 9 gpg PH RANGE: 7.0 to 9.0
WATER SOFTENER SHOULD BE UTILIZED IN HARD WATER AREAS
1-1/4" (33mm) DRAIN WITH AIR GAP
