2 triad B232I277RH-a electronic ballast for (2) F32T8

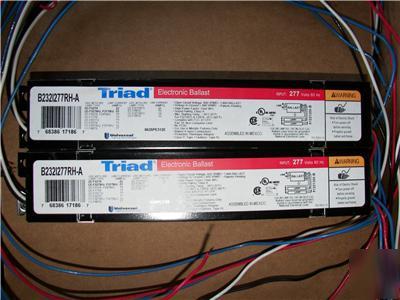

2 TRIAD B232I277RH-A ELECTRONIC BALLAST FOR (2) F32T8
TRIAD Universal Lighting Technologies
APPLICATION and PERFORMANCE SPECIFICATION
High frequency electronic ballast for (2/1) F32T8, (2/1) F32T8ES, (2/1) F28T8, (2) F25T8,
(2) F17T8, (1) F40T8, and (2) F25T12. Also equivalent U-shaped lamps
Line Voltage: 277vac, 10%, 60Hz Instant Start
Parallel Lamp Operation Passive Power Factor Correction
Application and Performance Specification Information Subject to Change without Notification.
Meets ANSI Standard C62.41-1991 UL listed (Class P, Type 1 Outdoor, Type HL)
Meets FCC Part 18 (Class A) for EMI CSA Certified
and RFI Non-Consumer Limits No PCB's
Meets CSA Standard 654 for Ballast Efficiency
Meets ANSI Standard C82.11-1993
Application: Physical Parameters:
Minimum Starting Temperature: 0 F, -18 C Length: 9.50"
with no remote mounting: -20 F, -29 C Width: 1.70"
For ES & 28W Lamps 60 F, 16 C Height: 1.18"
Maximum Ambient Temperature:105 F, 40 C Weight: 1.7 lbs.
Remote Mounting: 18 ft. max. Black 25" ( 1")
lead length18 AWG Red 48" ( 1") White 25" ( 1")
Compatible with "Powerline Carrier" (PLC) Blue 31" ( 1")
System and/or infrared systems
ONE LAMP APPLICATION: Cap unused blue lead, insulate to 600 volt
Ballast must be grounded in accordance with national and local electrical codes.
Call 1-800-BALLAST for technical assistance.
