Zadi power 3 pos on off key lock switch 250V 3A 125V 6A

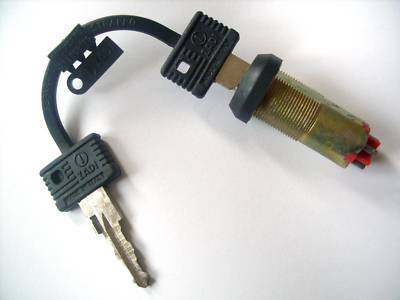

ZADI 3-position Key Lock Switch
Key Lock Switch with three positions.
- TWO keys, about 10 000 different combinations on this type of keys. The key combination is different on each key switch. It is written on the strap that holds the two keys (4-digit number).
- Rating: (at least) 250V/3A or 125V/6A
- Four leads - can switch two completely independant circuits.
- Three positions - center (no contact), left (contact on two of the leads), right (contact the other two leads) - The key can be taken off in any of these positions
- Size: Hole diameter = 19mm to 20mm (0.75-0.79 inch), Total length = 51mm (2 inch)
NOTE: If you need a larger quantity from this item, please let me know, I may be able to supply more of these key switches.
