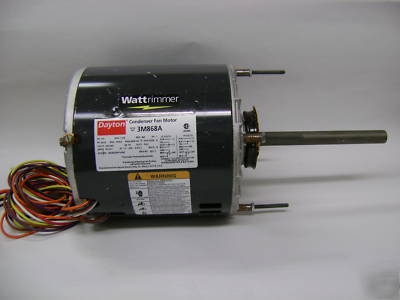

Dayton condenser fan motor 3/4HP, 1PH, 230/460 volts

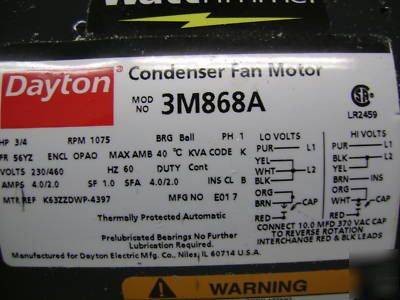

Condenser Fan Motor, Permanent Split Capacitor, Open, 3/4 HP, Nameplate RPM 1075, NEMA/IEC Frame 56YZ, Voltage 230/460, 60 Hz,
Full Load Amps 4.0/2.8, Ring/Stud Mounting, Auto Thermal Protection, Insulation Class B, Service Factor 1.0, Double-shielded Ball Bearings,
Ambient 40 C, CW/CCW Rotation, Length Less Shaft 7 7/8 In, Shaft Dia 5/8 In, Shaft Length 6 In, Resilient Ring Dia 2 1/2 In, Ring to Ring Center 7 7/8 In
