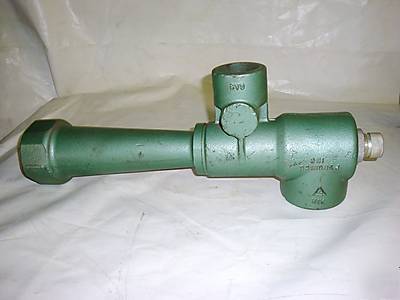

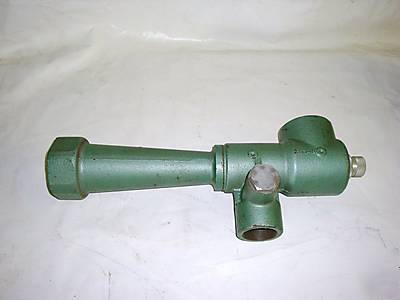

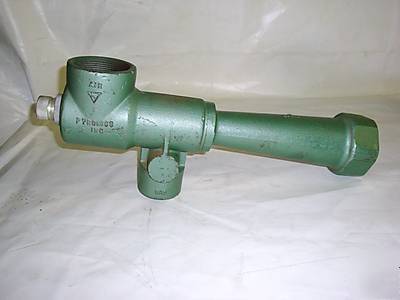

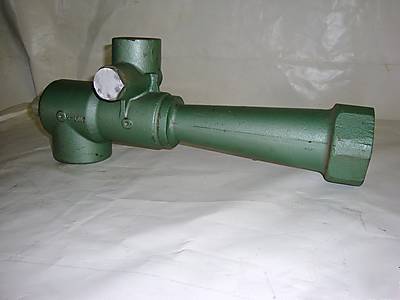

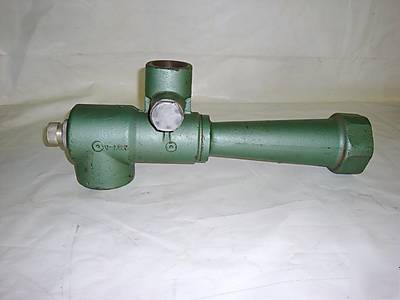

Pyronics 2332-24-mf-t, 2" gas inlet npt multiflo mixer
Multiflo Mixers are patented design adjustable high efficiency proportional mixers. The energy of the air passing through the jet produces a suction to entrain a combustible gas and deliver the mixture to the burners.
The patented Air Adjuster provides wide capacity ranges in the same size mixer. A simple hand adjustment changes the air capacity and matches the mixer to the burners.
The Multiflo Mixer uses a Zero Regulator to regulate the gas flow in correct ratio to air flow. A butterfly air valve in the air lines is used to vary air flow and heat output of the mixer. This valve maybe operated by automatic control devices.
* Patented Air Adjuster matches any burner area within its range - over 2.5 to 1 change
* Optimum shape factors in air jet and entraining throat are fixed - no jets, sleeves, rods, etc., to change
* Compact, rugged, heavy-duty construction
* Constant high entrainment efficiency in all ranges
* Axial adjustment of air tube balances the mixture pressure to the burners
* Air to gas ratio easily set and held
* Single valve control of heat input
