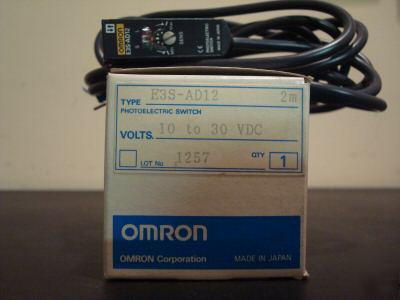

Omron sensor # E3S-AD12
0 to 700 mm (White paper 200*200mm)
10 to 30 VDC (ripple(p-p) 10% included)
Control output (Residual voltage)
(DC) 1 V Max. (Load current 100mA Max.)
Power supply reverce polarity protection
Mutual interference prevention
2-turn endless adjustment(with indicator)
Incandescent lamp:5000 lux Max., Sunlight:10000 lux Max.
(with no icing or condensation)
20 M OHM Min. at 500 VDC between charged parts and the case
1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
500m/s2 for 3 times each in X, Y, and Z directions
Applicable standard (EC Directive (Low Voltage Directive))
Applicable standard (EC Directive (EMC Directive))
Emission Enclosure: EN55011 Group 1 classA
Immunity RF-interference: IEC61000-4-3
Pre-wired models (Cable length: 2 m)
Light indicator(red), Stability indicator(green)
Instruction manual, Mounting bracket, Sensitivity adjustment driver, Sensitivity adjusting knob
