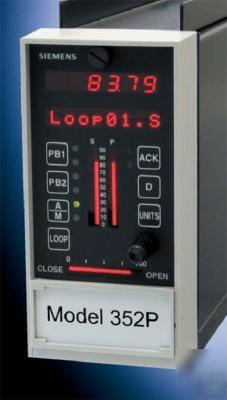

Moore products 352 352PEA21FNNNNAW
The part number for these is 352PEA21FNNNNAW
This part number break down is as follows
2 Terminal Connections, 40 (Mounting case)
1 Analog & Digital displays (Operator's Display Panel)
F Frequency input (No. 3 Input Options)
N Not Required (Link Interface)
N Not Required (Removable Configuration Board RCB)
N Not Required (Modification Options)
A Design level A (Design Level)
W ABS and FM/CSA (Electrical Approval)
The 352P Provides all of the I/O available with the 352 and several added features.
Modbus communications as a standard option
Local instrument link (LIL) option for network communication with LIL products and procidia Ipac
Lonworks fieldbus capability for additional I/O to support advanced control capabilities
These Features provide current 352 owners with a smooth transition to the powerful capabilies of the model 353 process automation controller. Model 352 owners can now have controller capabilies not previously available.
At the heart of the 352P is a powerful MPU Controller board that uses the latest in microproccessor technology. It includes on-board I/O and reuseable fuction blocks and is capable of solving a vast array of control implemenations including single loop, casacade, and dual loop.
A modbus communication port (RS485, half duplex) is provided at the rear terminals B1 and B2. The port allows network connection of up to 32 controllers( e.g., Models 352P, 353, 354/354N) to an operator workstation or CS enabling integration of controllers into a plant-wide system
Remote configuration uses the communication port (modbus RS232) on the underside of hte display assembly and the optional pc)based IConfig Graphical configuration Utility.
An optional I/O expander board can be added to the base model to increase the I/O options for improved accuracy and control. The board inclues: direct thermocouple, RTD, And frequency input capability. It also has additional analog input, analog output, digital input, digital output, and relay outputs. Like the 'No.3 Input' in a model 352, not all I/O is available simultaneously. In the 352, a different option board was installed for the No.3 Input. In the 352P, an 'Option 3 I/O Jumper' is set to make the I/O selection.
If more I/O is needed for multiple-loop applications, advanced control, or batch sequencing, a LonWorks remote I/O option board that uses the popular LonWorks protocol can be installed. This board provides connectivity via a high-speed digital fieldbus to a large selection of standard I/O products: analog inputs, analog outputs, and digital inputs and outputs using relay or solid state technology. The option requires that the option 3 I/O Jumper be set to the ' LON' position.
The hardware architecture is designed to accommodate other emerging fieldbus technologies. This includes fied communications that require lower power for intrinsic safety and higher speed for interplant networking.
Although the controller can be connected to and operated entirely from a central operator workstation, a controller faceplate is included. This local operator interface is for applications where loops need individual attention during startup, troubleshooting, mainteance, or emergency conditions. The convenient faceplate layout and sophisticated software allow process and configuration changes to be made quickly and easily.
The controller can be completely configured from the operator faceplate or configured remotely using the iconfig graphical configuration utility. An optional real time clock/configuration backup board is available to quickly transfer a configuration from one controller to another when ownload a configuration over a network is not available. This board also provides a real time clock function.
