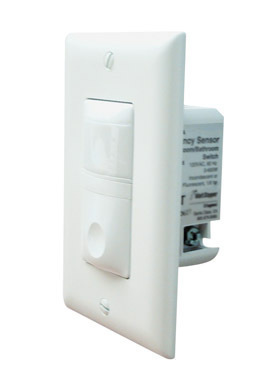

Watt stopper rs-250WH universal resi vacancy sensor 6PK
this is a case of 6 RS-250
Watt Stopper's universal application wall switch vacancy sensors replace standard wall switches. These switches offer convenient, cost-effective energy savings throughout the home. They are engineered to comply with California 's rigorous Title 24-2005 residential energy code.
Universal application sensors can be used in virtually every room in a residence. Homeowners can select appropriate on/off mode, time delay and light level settings to maximize potential energy savings without compromising comfort or convenience. The RS-250 can be used in any space where residents want to select a specific time delay and daylight contributions are significant.
RS-250 wall switch vacancy sensors use advanced PIR (Passive Infrared) technology to sense the difference between infrared energy from a person in motion and the background space. They operate as vacancy sensors when utilizing the preset factory setting for manual-On operation. When programmed for automatic-On, they operate as occupancy sensors.
A setup button and two adjustment trimpots are conveniently located behind the On/Off button and allow for a variety of additional control options such as manual or automatic-On, time delay, and light level sensing.
* Replaces a standard light or fan single-pole switch
* No leakage to load in Off mode for safety
* Low-profile styling with uniform color-matched lens and devices
* Manual or automatic-On operation
* Adjustable time delay from 15 seconds to 30 minutes
* Light level sensing prevents automatic-On of lights when adequate daylight exists
* Lighted switch for visibility in darkened rooms
* Choice of three decorator colors
* Works with most common residential energy types
* California Title 24 compliant
* Load requirements: 0-600W incandescent, fluorescent, compact fluorescent (CFL), magnetic low voltage (MLV), electronic low voltage (ELV) and 1/6 hp
* Coverage: 180 degrees, maximum 600 square feet
* Adjustable light level settings from 10 - 150 fc (100 - 1500 lux)
* 2.63" x 1.69" x 1.88" (67.8 mm x 42.9 mm x 47.8 mm) L x W x D
