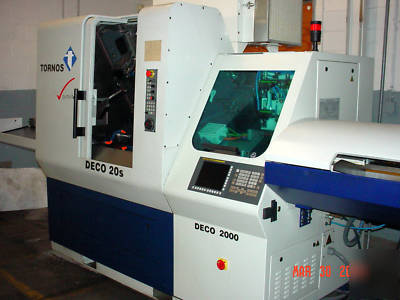

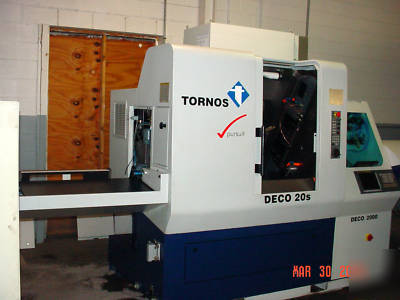

Tornos deco 20S cnc swiss lathe
General Specifications per Manufacturer:

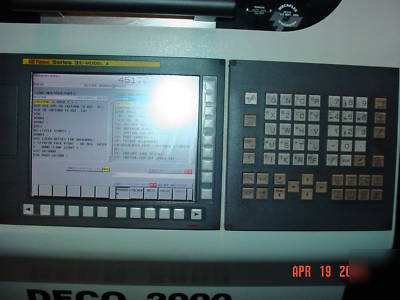

Control: ............................... Fanuc 31iA
Number of simultaneous axes: ........... all axes
Number of interpolated axes: ........... all axes
Headstock (axis Z1) (+C1 optional)
Max. bar diameter: ..................... 20 (25.4) mm
Length of parts - guide bush turning: .. 200 mm
Programmable spindle speed: ............ 100-10,000 rpm
Positioned indexing and stop: .......... 0.001 degree
Max. spindle power: .................... 3.7 (5.5) kW
Number of tools in the guide bush: ..... 14 (fixed or turning)
Tool section: .......................... 16 x 16 mm
Max. number of cross mill/drill: ....... 4
Max. power of turning spindles: ........ 1.5 (2.2) kW
Counter-spindle and back-operation (X4/Y4/Z4) (+C4 optional)
Max. diameter clamping capacity: ....... 20 (25.4) mm
Standard length of parts: .............. 200 mm
Programmable rotation speed: ........... 100-10,000 rpm
Max. number of back-operations: ........ 8
Max. number of fixed and turn spindles: 4

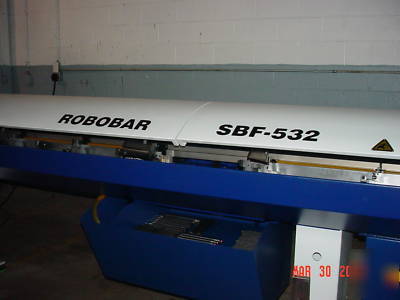

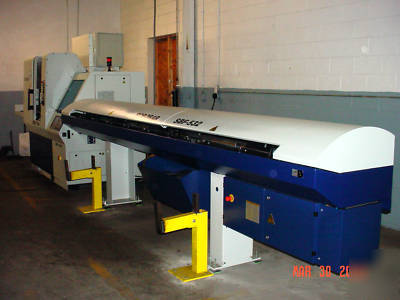

Robobar SBF-532 barfeed w/ 4mm adapter kit

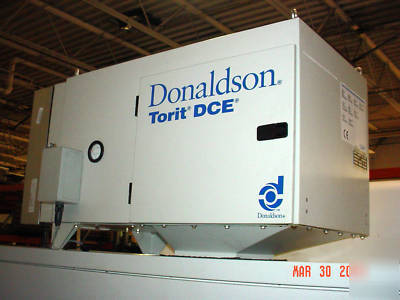

Donaldsoon Torit Mist Collector
Long Workpiece Ejection System
BC Manufacturingwww.bc-mfg.****@bc-mfg.com(***)-229-3300X42 office
