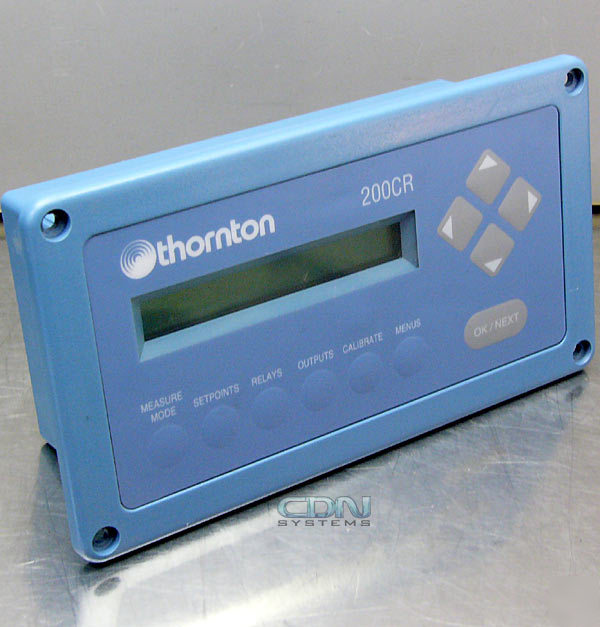

Thornton 200CR conductivity resistivity meter analyzer
Thornton 200CR Conductivity Resistivity Meter Analyzer
* Display: 1x16 character backlit LCD
* Measurements: resistivity, conductivity, C, F, total dissolved solids, % rejection, difference and ratio, %HCl, %NaOH, %H2SO4 (with additional sensors, not included)
* SIgnal inputs per channel: 2 (total 4 signals)
* Measurement time cycle: 1 second
* Configuration: all setup information is stored in non-volatile memory
* Setpoints (alarms): 4 independent alarms, programmable high or low limits
* Relays: 2 with programmable time delay and hysteresis
* Outputs: 2 analog outputs, 4-20mA
* Watchdog timer power supply monitor
* Input power: 90-130VAC 50-60Hz
The Mettler-Toledo/Thornton 200CR is an analytical and process control instrument for mesuring solution properties. It is user friendly, flexible and highly accurate.
