New caterpillar / blaupunkt radio p/n: 1740001

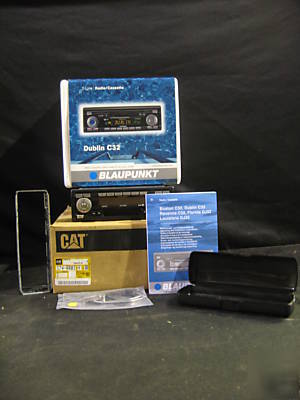

(1) New Caterpillar / Blaupunkt Radio P/N: 174-0001.
This radio was manufactured by Blaupunkt for Caterpillar. It is a Blaupunkt Dublin C32 or Revenna C32 Radio Cassette Receiver. There are no differences between the Dublin C32 and the Revenna C32. Caterpillar stocks both radios under the same part number. 12 Volt.
Dublin C32 or Revenna C32 Features:
* Easy to use and easy to install RDS radio cassette receiver
* Black removable front panel, large green / yellow display and red button illumination
* Powerful 4 x 45W amplifier with X-BASS loudness and comprehensive tone control
* Easily upgradeable with connections for remote control, CD changer, external amplifiers and personal hi-fi auxiliary input
* LW / MW / FM waveband coverage. 30 stations can be preset
* RDS-AF (alternate frequency) feature inaudibly retunes the receiver to the best available signal for the station that is currently set
* Travelstore automatically stores the six most powerful radio stations transmitting locally in the FM memory bank
* TA (traffic announcement) will switch station for the duration of a traffic report. The original station is restored at the end of the report. Tone, balance and volume of traffic announcements can be independently set.
* PTY-EON (programme type) information displays and allows selection of similar types of programme (news, pop, classics, sport etc.). Program types can be assigned to preset station buttons
* Preset scan will play all receivable stations for a period (can be adjusted between 5 and 30 seconds)
* Switchable hi-cut filter improves reception of weak FM stations by reducing treble
* Auto reverse cassette deck with fast forward & fast rewind
* Switchable radio monitor allows radio listening while winding tape
* 4 x 45W max power amplifier (4 x 25W RMS). Separate adjustments for treble, bass, fader and balance
* Source-specific sound adjustment. Bass & treble settings can be different for each sound input source.
* X-BASS loudness sound enhancement for low level listening. Programmable in four stages for a full sound at low volumes (each audio source can have its own level setting)
* Power on and mute volume can be independently set
* Four channel (3.0V) preamp output for connecting external amplifiers (requires accessory cable)
* Blaupunkt compatible infra-red remote controls can be added as an optional accessory. Unit can be linked to many makes of factory-fitted remote controls with an additional adaptor
* Mute facility can be manually selected, or automatically activated by hands free phone call. Mute volume level is adjustable
* Auxiliary input facility to connect external walkman MP3 device etc. (requires accessory cable) (Not available if CD changer is connected)
* Timer allows one hour of use with ignition switched off, to protect vehicle's battery
* Clock display (12/24hour) can be selected. Clock display can show continuously when unit is switched off, but ignition on
* Sound level display graph can be turned off
* Red control button illumination
* Dublin C32 radio CD receiver with mounting sleeve
* Black plastic carry case for front panel
* Anti-theft warning window stickers
* Aerial connection adaptor with retaining clip
* Rubber rear support with extension piece
* Operating and installation instruction booklet
Caterpillar List Price Is Over:
