Mogul porcelain hid light socket high pressure sodium

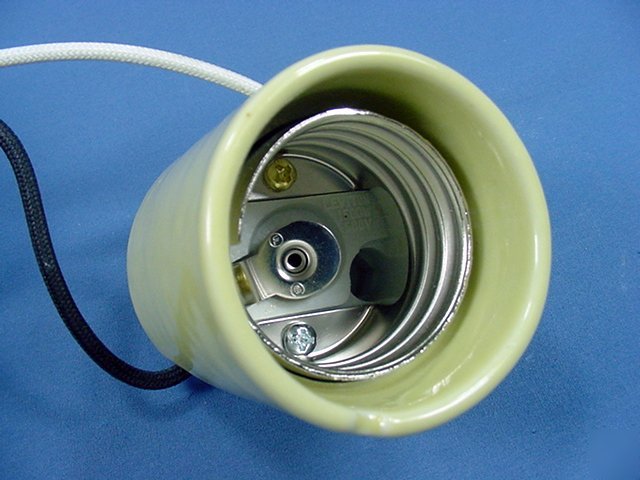

Leviton 8756 porcelain high-intensity discharge (HID) lampholder. Handles high pressure sodium lamps up to 400W. This is the lampholder only and is intended for retrofit or replacement applications in existing fixtures. It does not include a ballast or enclosure. Bulk packed loose with no individual packaging or instructions. Features include:
* Rated 1500W 600V; 4kV pulse rated
* Handles high pressure sodium lamps up to 400W
* Measures 2-5/32" diameter x 2-39/64" high
* Copper alloy nickel-plated screw shell with lamp grips
* Lugged leads are No. 14 AWG 200 C 600V glass braid SEW-2, 12" long, stripped 1/2"
* 8-32 mounting screw holes on 1-3/8" centers
* Single circuit - no ON/OFF switch
* Lampholder only - intended for retrofit applications
