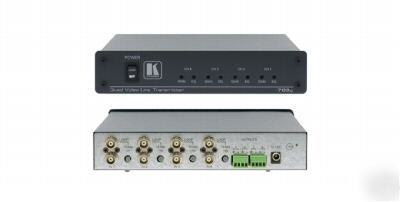

Kramer 703XL quad video line transmitter utp CAT5
Manufacturer: Kramer Electronics Model/Part #: 703XL
Kramer 703XL Quad Video Line Transmitter:
The 703XL is a twisted pair transmitter for composite video signals. It will convert up to 4 composite video inputs to 4 twisted pair outputs which will be converted back to composite video when used in conjunction with the706XL twisted pair receiver.
Bandwidth - 12MHz (- 3dB) at 300 meters (980 ).
Twisted Pair Output - Terminal block connector.
Level (Gain) and EQ (Peaking) Controls.
Selectable Input Signal Termination.
Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-80 adapter.
